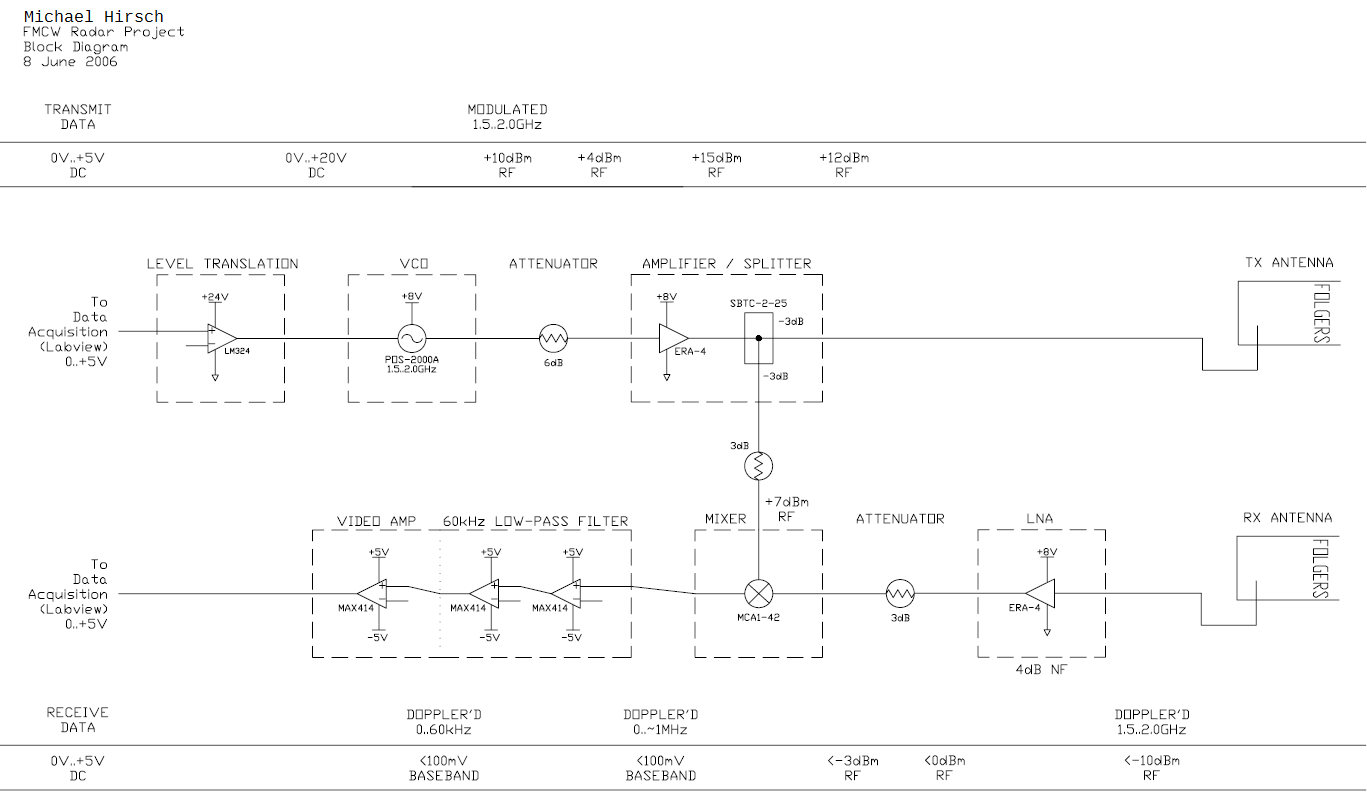

Block diagram of Synthetic Aperture Through Wall Radar Prototype

Block diagram of Synthetic Aperture Through Wall Radar Prototype

Given the specifications from Prof. Kempel and Greg Charvat, here is my first complete pass at the coffee can through wall radar system that will be suitable for synthetic aperture radar, using the 2 GHz frequency range. Part numbers are included to help others build this educational but quite operational radar.
