Coffee Can Radar Modules built thus far

less than 1 minute read

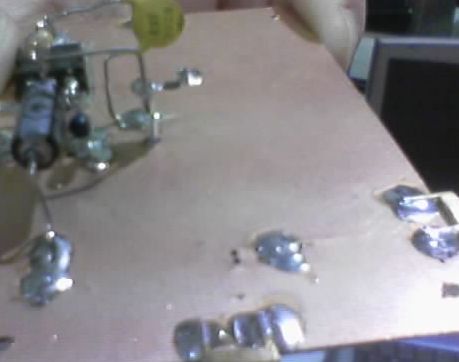

microwave Manhattan construction
Manhattan-style circuit construction

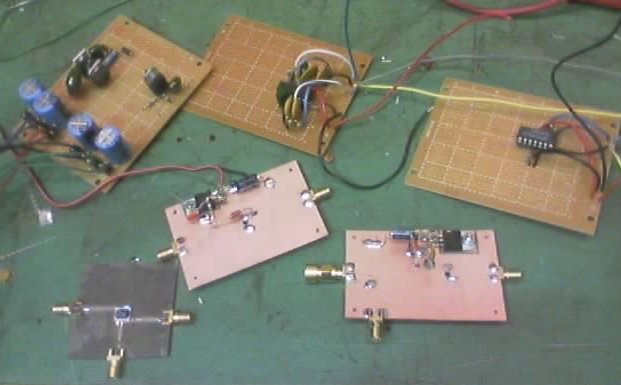

We have the following coffee-can modules built for the first coffee-can radar:

Position Function
lower left mixer MCA1-42
lower right Amplifier/splitter module with ERA-4 MMIC amplifier and SBTC-2-25 splitter onboard
lower middle LNA board with ERA-4 amplifier
upper left power supply board
upper middle 60kHz LPF and video amplifier board
upper right VCO modulator (level translator) board


coffee can radar hand-built modules
hand-built radar modules for the coffee-can radar
