Basler Aptina 0134 flatness measurements

Flatfield measurements

These measurements were each taken with a C-mount size deep red filter inserted, held by hand on a LED diffuse source. Three measurements were taken for each camera, rotating the filter and camera to help eliminate flatness issues with the diffuser. Due to noise in the images inherent to the 100 ms exposure, a smoothing filter was used.

Gaussian smoothing kernel

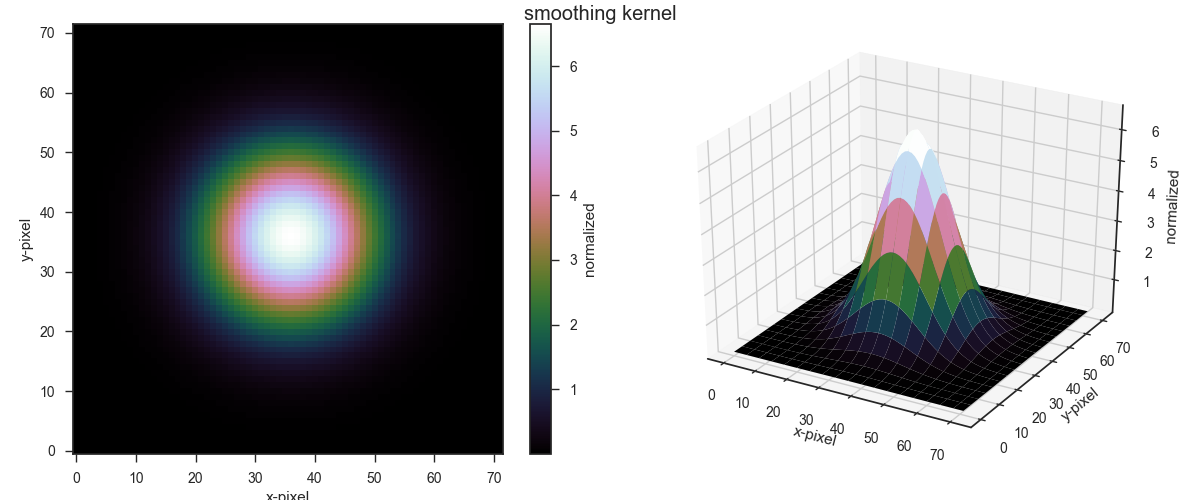

Gaussian smoothing kernel.
Deep-red filter

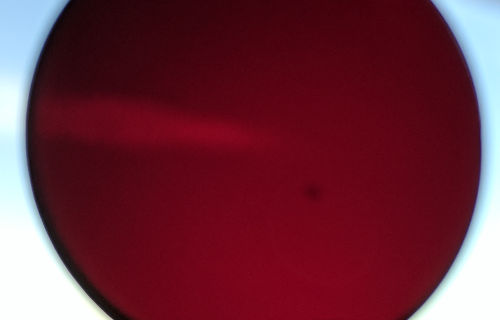

Deep-red filter used to attenuate flatfield source into broadband imager.

Basler flatfield measurement

The Basler Dart with Aptina 0134 chip was measured in 12-bit and 8-bit mode.

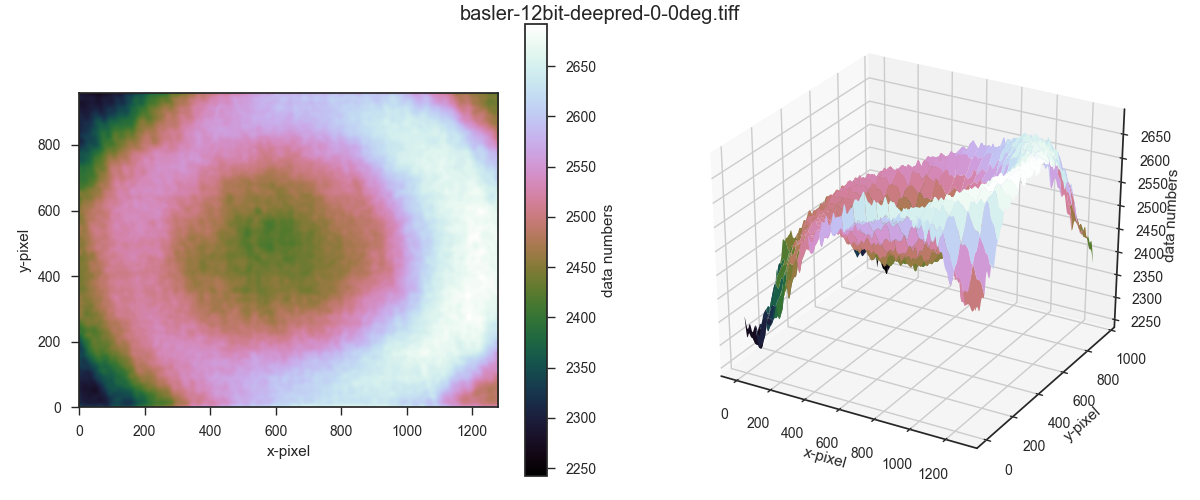

flatfield Basler 12-bit flatfield Basler 12-bit flatfield Basler 12-bit

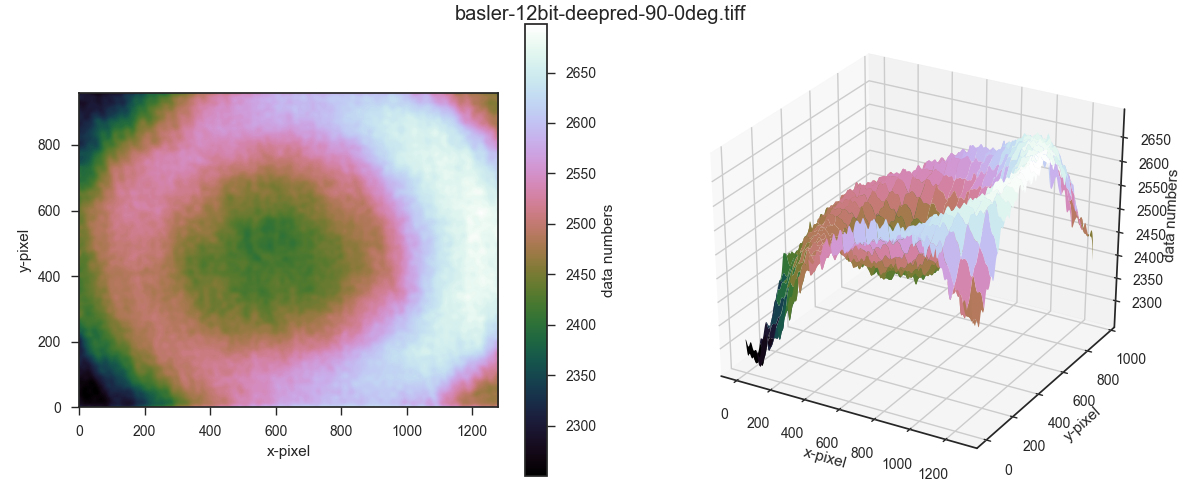

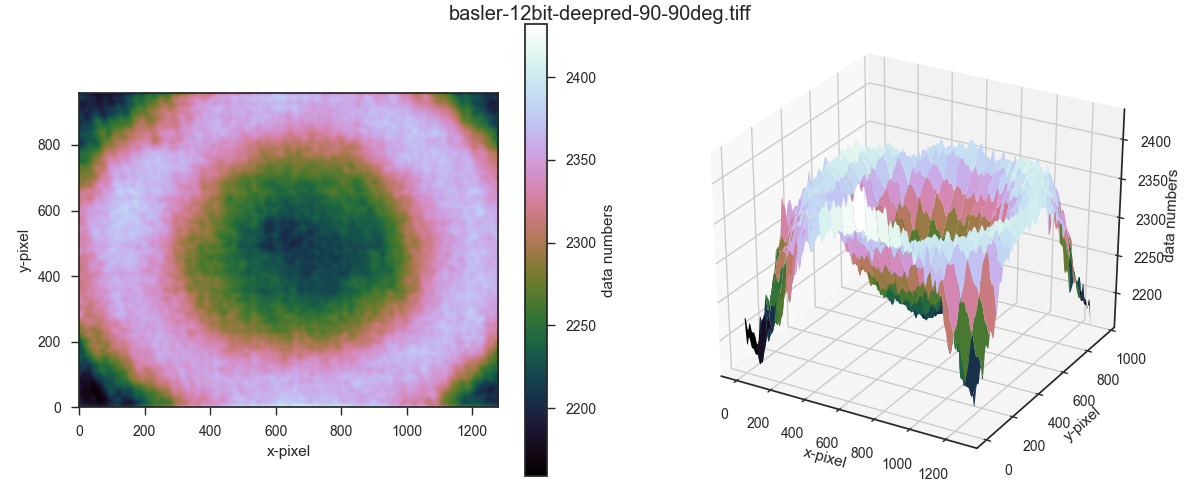

Basler Dart 12-bit measurements.

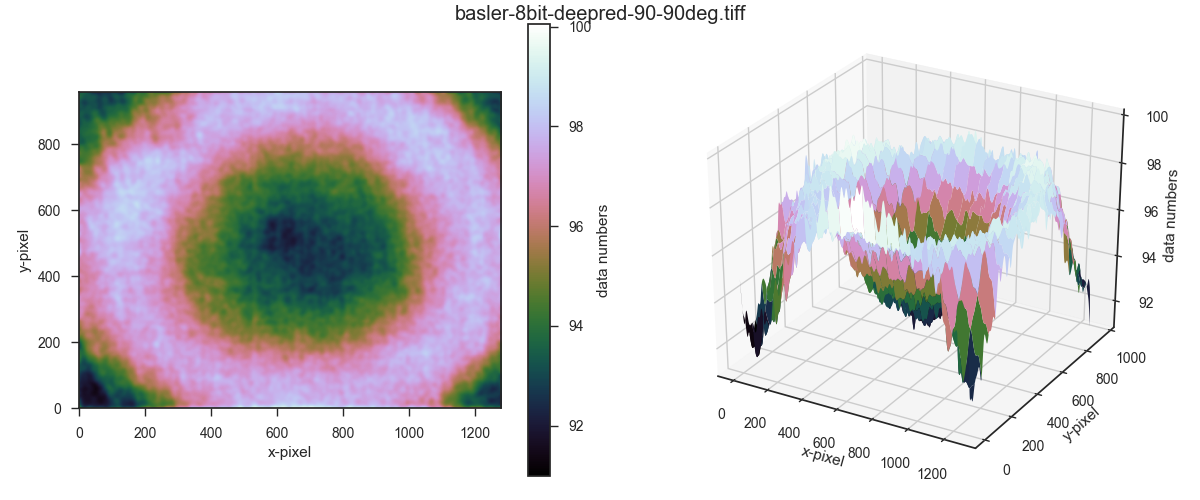

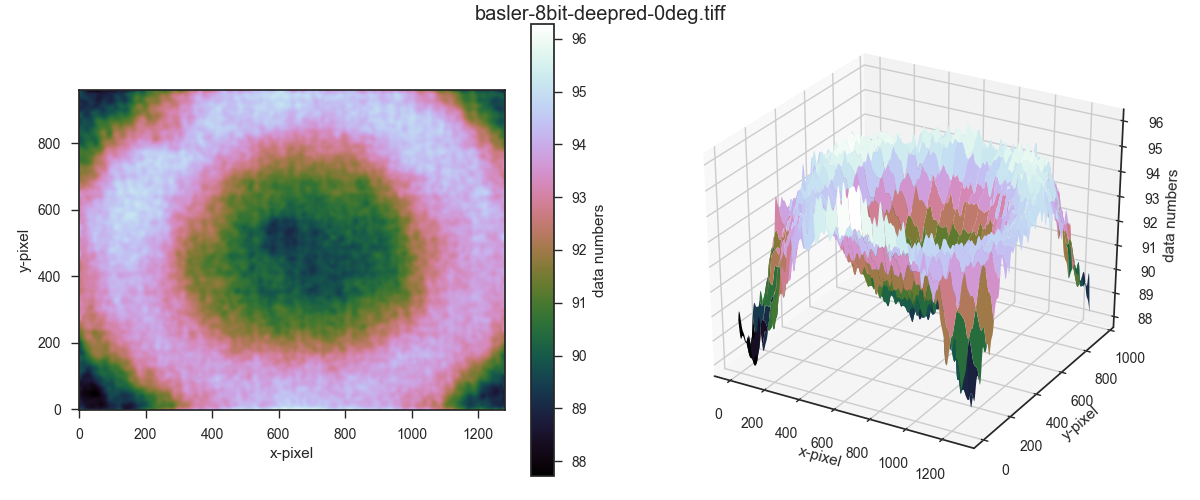

flatfield Basler 8-bit flatfield Basler 8-bit flatfield Basler 8-bit

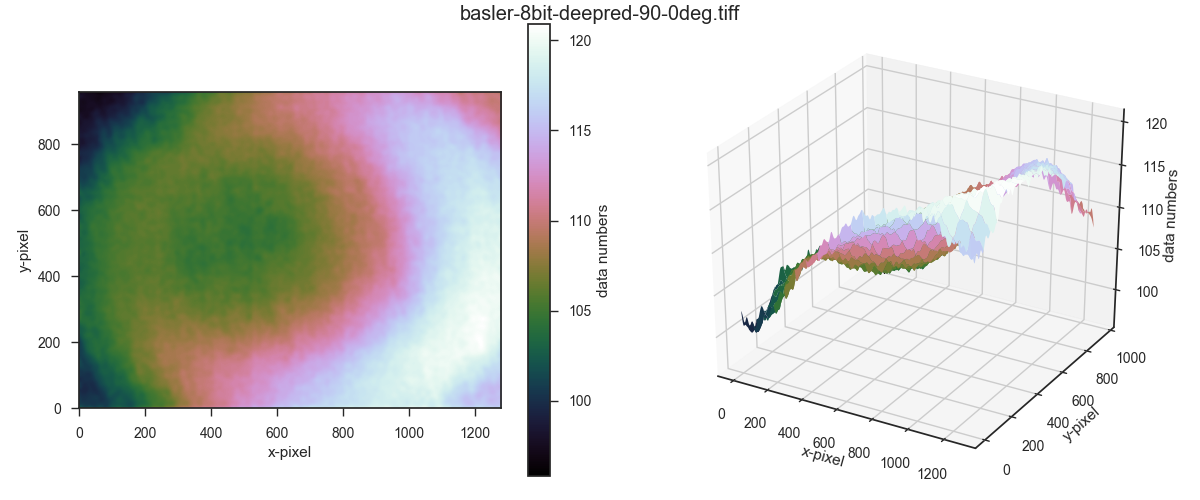

Basler Dart 8-bit measurements.

Sumix flatfield measurement

Due to time constraints, the Sumix demo program was used, which only has 8-bit output to file, despite the Sumix camera having 10-bit output available.

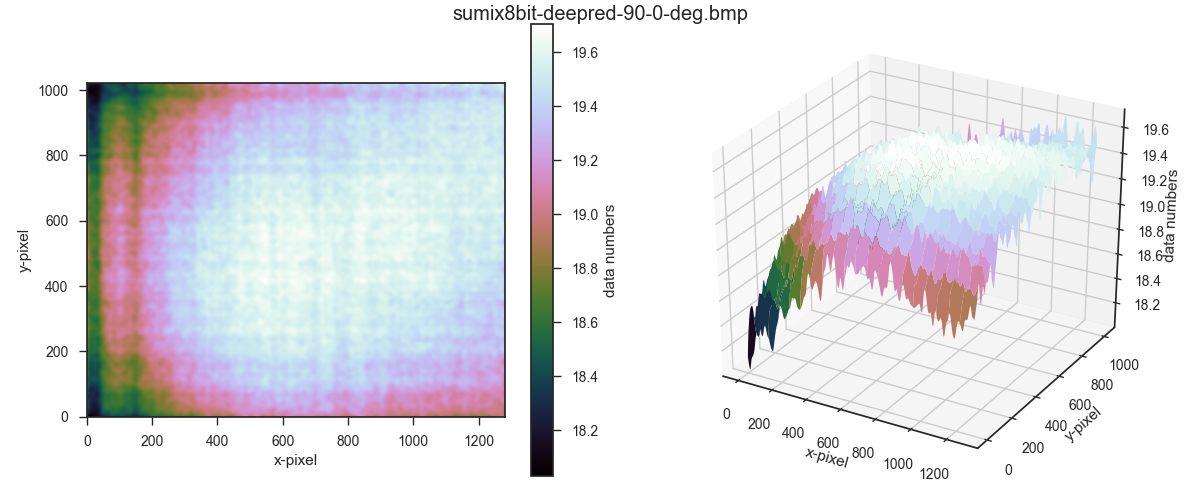

flatfield Sumix 8-bit flatfield Sumix 8-bit flatfield Sumix 8-bit

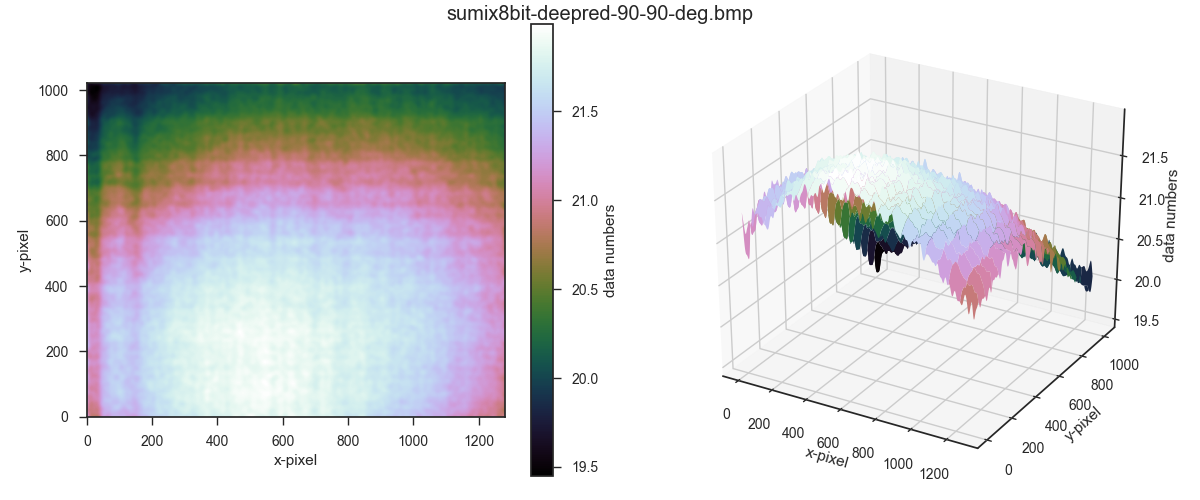

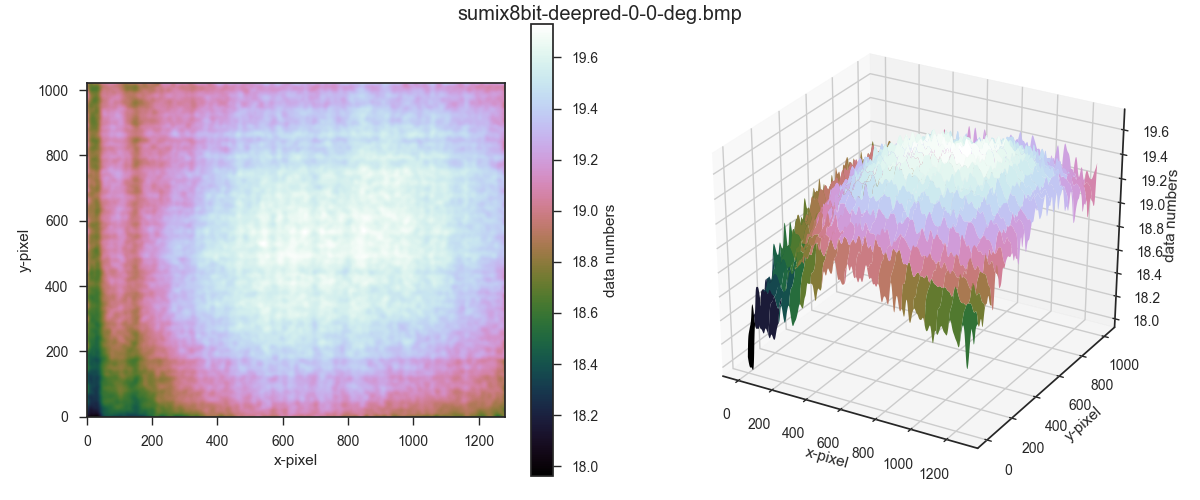

Sumix 8-bit measurements.

Slide measurement

It was found that half the 6 um bead slides at 0.02% concentration had defective preparation, and were discarded. The remaining slides are also somewhat defective, but have enough “good” beads that our cell nucleus detection algorithm picks them out.

Blue fluorescence measurement

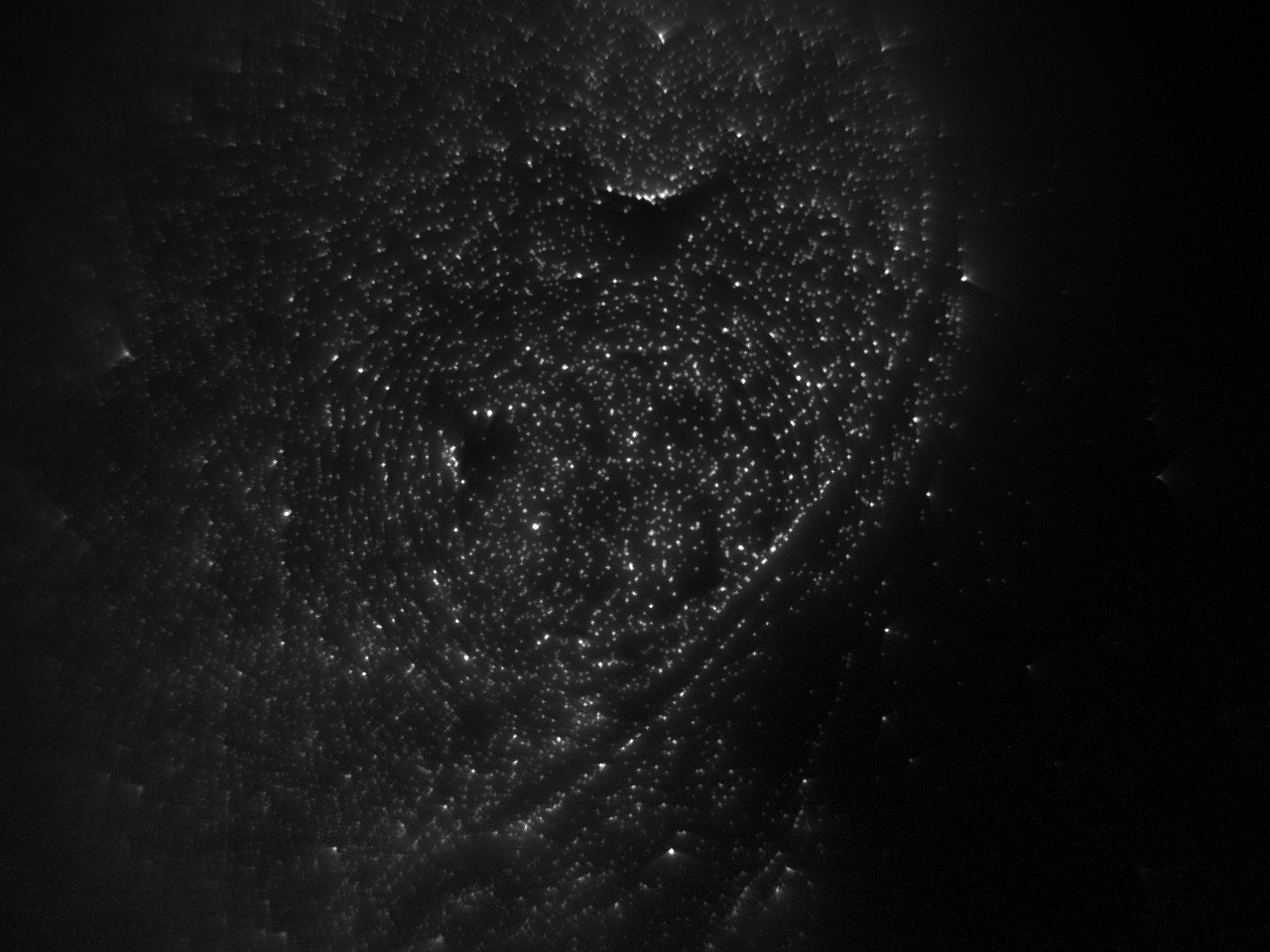

Blue excited fluorescence measurement with Polysciences #23519 6 um beads at 0.02% concentration.
